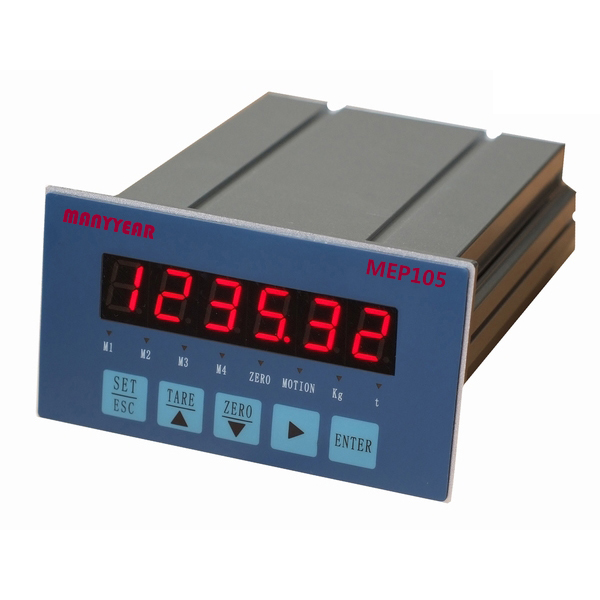

MEP105 weight controller
MEP105 weight controller

MEP105 weight controller

digital weight transmitter, weight indicator, 包装秤weight control instrument, 配料秤weight control instrument.

型号: MEP105
类别: weight controller
工作电压:: 95-240vac/24vdc
Digital indicate: LED
analog output: 0-10vdc, 4-20mA
digital output: rs232/485
apply: digital weight transmitter, weight indicator, 包装秤weight control instrument, 配料秤weight control instrument.


如果您完成了表格,请发送至admin@manyyear.com。 我们将在 24 小时内回复您。

  产品选型参考

在线销售

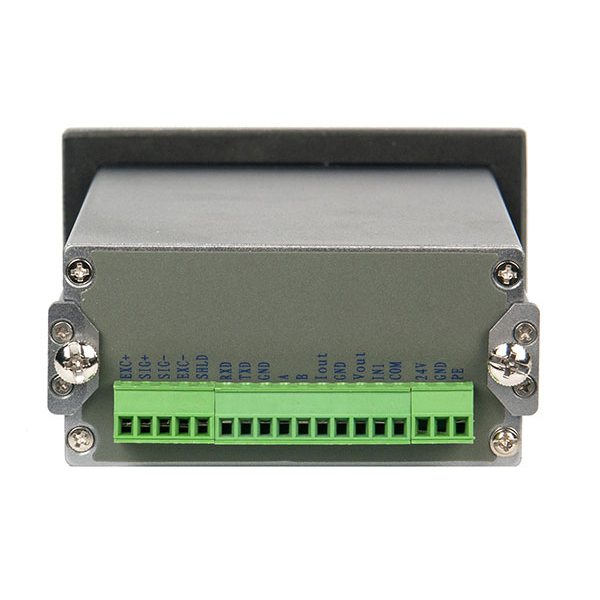

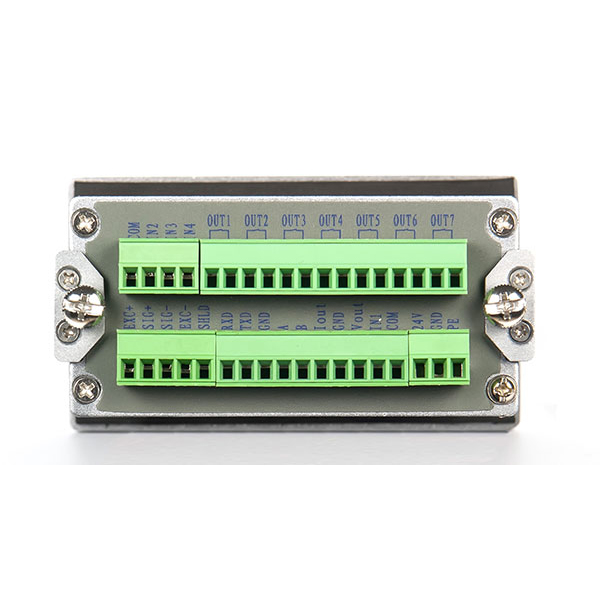

产品图片参考

MEP105 weight controller-深圳市瑞年科技有限公司

MEP105 weight controller

产品技术规格

以下规格仅供客户设计参考。我们可以提供ODM/OEM产品。
                                                     digital weight controller, 包装秤weight controller, 配料秤weight controller

MEP105 is a programmable quantitative weighing control instrument designed for 包装秤, Batching scale, weight control. It has several functions, such as tare, zero setting, alarm, customer programming capability, material in suspension correction, and so on. High accuracy, stable performance, easy operation and versatility are among the features of this product. Appropriate for a wide variety of quantitative weighing application: chemical industry, cement industry, metallurgy, building materials, foodstuffs, etc
型号: MEP105
类别: digital instrument
工作电压:: 95-240vac/24vdc
Digital indicate: LED
analog output: 0-10vdc, 4-20mA
digital output: rs232/485
apply: digital weight controller, 包装秤weight controller, 配料秤weight controller
型号 reference

MODELWeight indicate4 Point Relay0-10VDC/ 4-20MA outputPeak reservesRE485/RS232Packing scaleBatching scale
MEP105YESNANAYESYESNANA
MEP105AYESNAYESYESYESNANA
MEP105CYESYESNANAYESNANA
MEP105CAYESYESYESNAYESNANA
MEP105PYESYESYESNAYESYESNA
MEP105BYESYESYESNAYESYESYES
Standard Function

Input SignalDC and DV signals of electrical resistance strain gage, weighing cell and proliferated silicon 压力传感器
Display Mode5-bit 16mm high light LED display
Comparing Control Output(option-able optional)4-point comparing output, 6 optional comparing modes, adjustable sensitivity of comparison value and comparing control output
Analog Output(, optional)4mA – 20mA photoelectric isolation output of gross weight
BCD Output(optional)Parallel 29-bit non-isolated TTL level output or isolated OC output
Communication Interface(optioanl)Standard RS-485 and RS-232 interfaces, adjustable address and rate
Display Output(optioanl)6-line differential transmission, adjustable frequency of transmission, distance of 1200m
Digital FilteringTo filter high frequency small amplitude interference to ensure stability and accuracy of indication.
Zero Tracking and Automatic ResetReading will be tracked until zero if weight is in the range of zero tracking and kept over 1 second.
Change DetectionReseting, shelling and tracking will not be executed until change of measured value in 1 second is beyond preset graduation value.
Optional Output ControlControl power of comparing output and analog output can be granted to computers or meters after communication interfaces are determined.
External ResetCommand of external reset is executed through on-off input.
Printing Interface(option-able)Manual and timing printing
Technical Data:

Power Supply:24VDC/ 220V  AC,±10%,power consumption 10VA

Operating Environment:0℃~50℃, lower than 90%R.H

Display:5 Data Display,16mm LED  5-bit 16mm high light green LED

indicator light: gross weight、net weight、Peak Value、vally value、change of weight、comparing output、zero position

量程: of Display:-19999~50000, 安全过载0.L

space between display grades:1~5

decimal position: 5 optional positions

excitation voltage of output:10V±5%,current >20mA

max. voltage of input:±10V

range of input signal:0~±18mV,0~±37mA,0~±75mA,0~±150mA 4 optional levels

Input Impedance:more than >10MΩ

Zero Drift:< less than ±0.04μV/℃

Measuring 量程: Drift:< less than ±10ppm/℃

Non-Linear Error:< less than 0.006%

sampling rate and comparing rate:50T imes / second

Max. Display Graduation:10000 grades

Technical Data for Output Accessories

Comparing Control 输出 6 optional comparing modes

-HH-: output while gross weight > set comparison value

-LL-: output while gross weight < set comparison value

HP-R:Output while positive deviation between gross weight and set value RU > set comparison value

LP-R:Output while negative deviation between gross weight and set value RU > set comparison value

HL-PR: Output while absolute deviation between gross weight and set value RU > set comparison value

n-HL: Output while absolute deviation between gross weight and set value RU < set comparison value

Analog 输出

1、Photoelectric Isolation

2、4mA~20mA Dc, resistance of max. load 500Ω

3、Resolution:1/4000

4、50 outputs / second

BCD 输出

1、Parallel 29-bit

2、Non-isolated TTL level output or isolated OC output

3、Adjustable output requency, max. 50 times / second, min. once / second

Communication Interface:

1、Photoelectric Isolation

2、RS-232,RS-485 standards

3、instruction mode or succession mode

4、   address~99,adjustable communication rate 2400、4800、9600、19200

5、   Testing software, configuration software and technical support are available.

Display:

1、   6-line differential transmission, distance of 1200m

2、   adjustable transmission frequency, max. 50 times / second, min. once / second





产品尺寸

MEP105 weight controller-深圳市瑞年科技有限公司

MEP105 weight controller

应力结构 & 装配参考

MEP105 weight controller-深圳市瑞年科技有限公司

MEP105 weight controller

产品应用

MEP105 weight controller-深圳市瑞年科技有限公司

apw-packing-scale

MEP105 weight controller-深圳市瑞年科技有限公司

apw-force-test-7

MEP105 weight controller-深圳市瑞年科技有限公司

apw-检重秤-1
